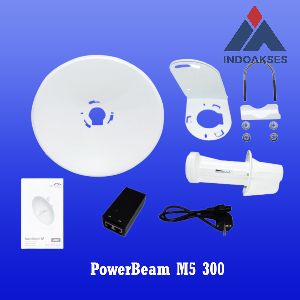

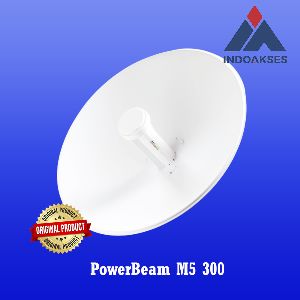

UBNT PBE-M5-300 Access Point Outdoor dengan antena dish 22dBi MIMO berjalan pada frekuensi 5Ghz dengan Output power Max 26dBm.PowerBeam M5-22dBi memiliki prosesor lebih tinggi Atheros MIPS 74KC, 560 MHz, RAM 64 MB DDR2, 8 MB Flash. Access Point ini sudah dilengkapi Adaptor POE UBNT 24V, 0.5A, dengan Antenna Dish Refector diameter 300mm.
Specifcations NanoBeam NBE-M5-300 M5-22dBi
| Model | NBE-M5-300 |
| Processor Specs | Atheros MIPS 74KC, 560 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| Networking Interface | (1) 10/100 Ethernet Port |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Dimensions | 325 x 325 x 256 mm |
| Weight | 1.203 kg, (2.65 lb) |
| Power Supply | 24V, 0.5A PoE, Passive PoE |
| Max. Power Consumptio | 6 W |
| Gain | 22dbi |
| Max TX Power | 26dBm |
| Wind Loading | 200.2 N @ 200 km/h |
| Wind Survivability | 200 km/h (125 mph) |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Channel Sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount Kit Included |
| ESD/EMP Protection | Air: ±24 kV, Contact:± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Non-Condensing |
| Frequency Worldwide | 5170 – 5875 Mhz |
| Frequency USA | 5725 – 5850 Mhz |
